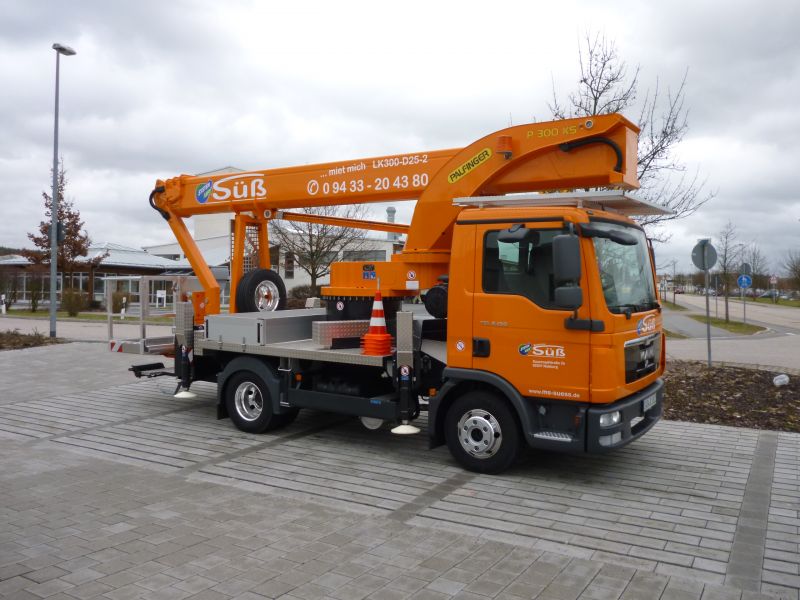

Truck mounted platform - LK300-D25
Technical datas
Manufacturer name: | Palfinger P 300 KS |
Max. working height: | 30 m |
Max. platform height: | 28 m |
Max. horizontal reach: | 20,50 m* |
Max. Lift capacity: | 350 kg |
Platform dimensions: | 1,80 x 0,80 m |
Machine dimensions: | 7,65 x 2,55 m |
Transportation height: | 3,45 m |
Support dimension: | 2,55 / 3,80 / 5,00 m** |
Weight: | 7300 kg |
Ground pressure load support max.: | 6200 daN |
Power: | diesel |
Features
Usage area: | outdoor use |
Special features
+ extreme lateral reach
+ Fully variable support width
+ Automatic support levelling
+ No overhang (within the mirror width)
+ 230 V - Socket in basket
+ Differential lock
+ Bio oil filling
* see range diagram: (load dependent)
** narrow / one side narrow / both sides wide supported
(plate centre with plate load + 50 cm)
specifications
specifications
all disclosures without grant
