Trailer-Mounted Boom Lift - AB150-EB18

add to my request

Technical datas

Manufacturer name:	Dino 150TB
Max. working height:	15 m
Max. platform height:	13 m
Max. horizontal reach:	10 m*
Max. Lift capacity:	215 kg
Platform rotation:	2 x 45°
Turntable rotation:	360° endless
Platform dimensions:	1,30 x 0,70 m

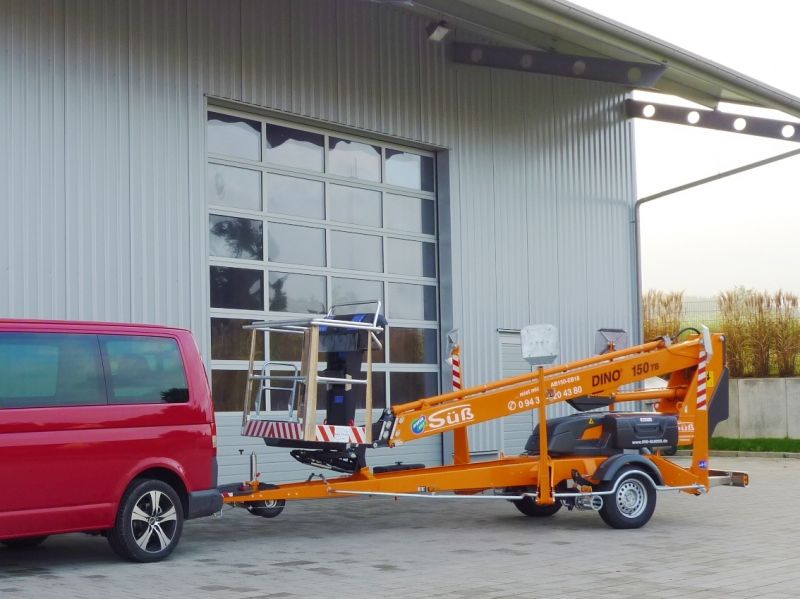

Transport dimensions:	6,52 x 1,78 m
Transportation height:	2,18 m**
Support dimension:	3,90 / 3,90 m***
Weight:	1835 kg
Ground pressure load support max.:	1280 daN
Power:	battery with charger

Features

Usage area:

indoor use / outdoor use

Special features

+ Shunting drive
+ 230 V connection in the platform
+ With load distribution plates, the stage is also suitable in gyms with a sprung floor

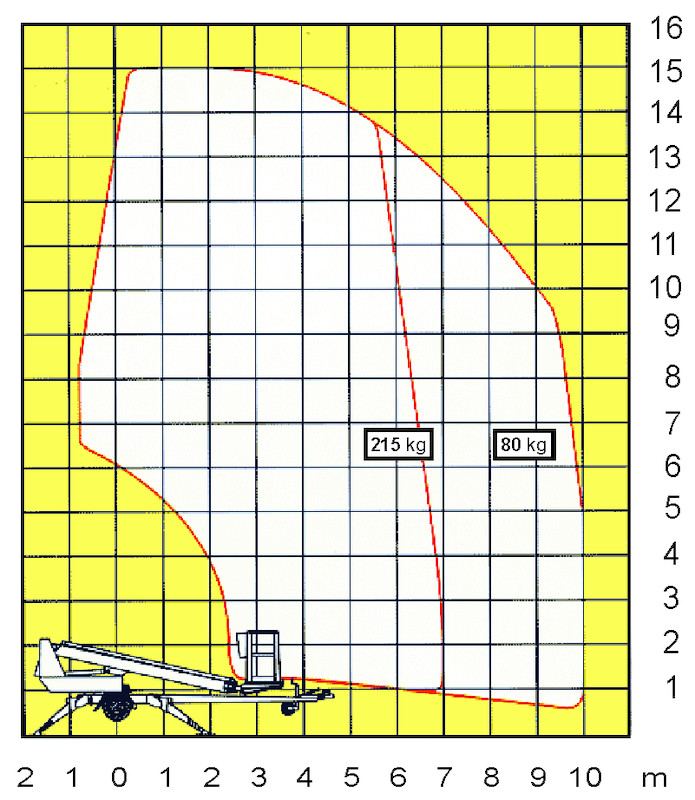

* Horizontal reach is load dependent (see diagram)
** The transport height can be adjusted to 1,99 m
*** Supporting dimensions: (plate centre - plate outside) 4,40 m
