Telescopic boom lift - TB433-D25

add to my request

Technical datas

Manufacturer name:	JLG 1350 SJP
Max. working height:	43,30 m
Max. platform height:	41,30 m
Max. horizontal reach:	24,38 m
Max. Lift capacity:	450 kg
Platform dimensions:	2,44 x 0,95 m
Transport dimensions:	11,90 x 2,49 m
Machine dimensions:	14,89 x 3,82 m
Transportation height:	3,06 m
Turntable overhang:	1,70 m
Weight:	20130 kg
ground preasure tyres:	14000 daN
Power:	diesel
Gradeability:	45 %

Features

Usage area:	outdoor use
All-terrain mobility:	yes
Non marking tires:	no

Special features

+ Integrated power generator
+ Extreme lateral reach
+ Swing axle
+ 3D JIB
+ All-wheel drive
+ 3 steering modes
+ Approval for 3 people (450 kg)
+ Telescopic axles

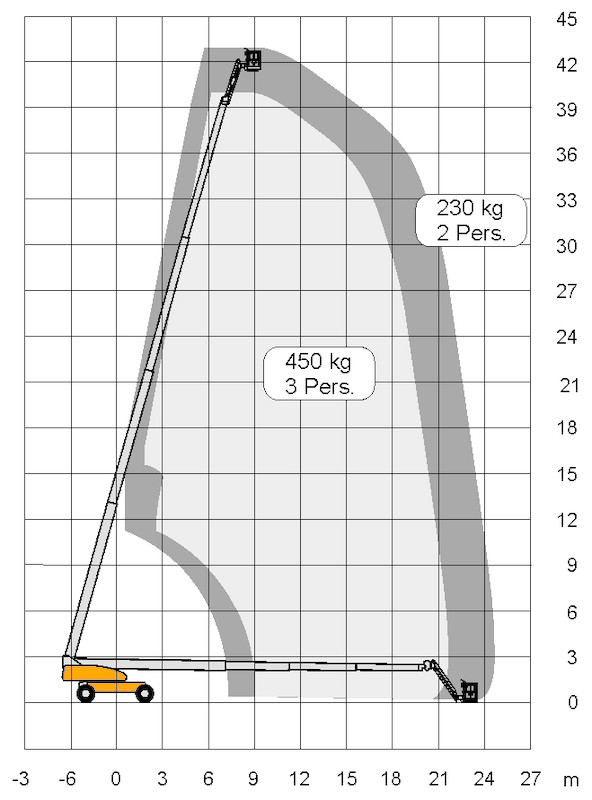

* Max. horizontal reach is load dependent (see diagram)
