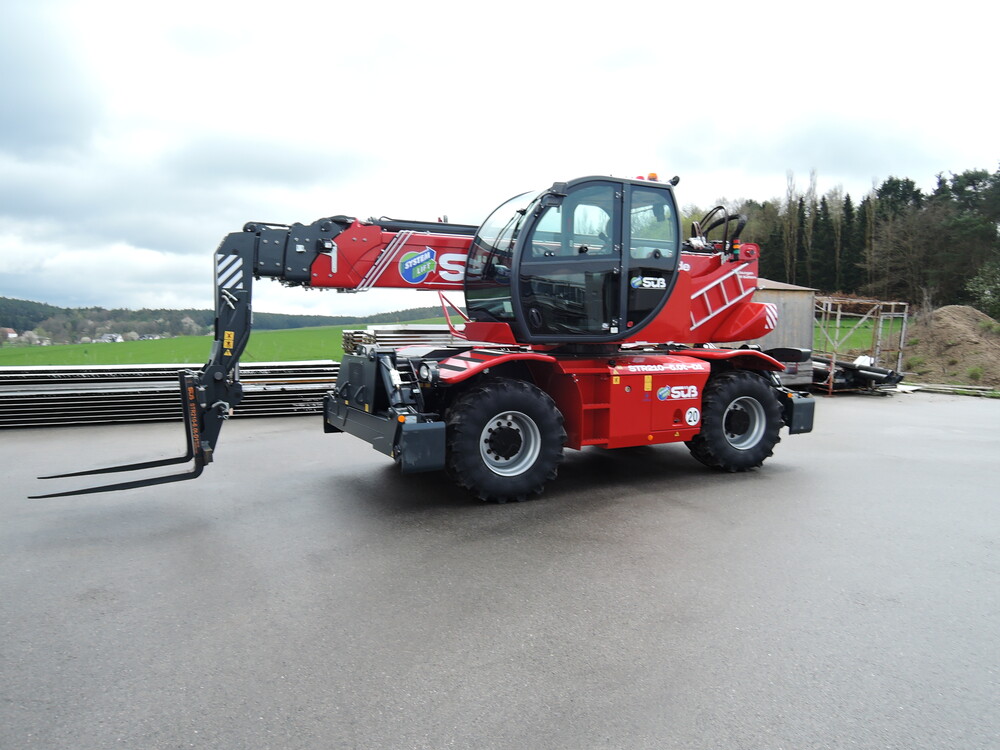

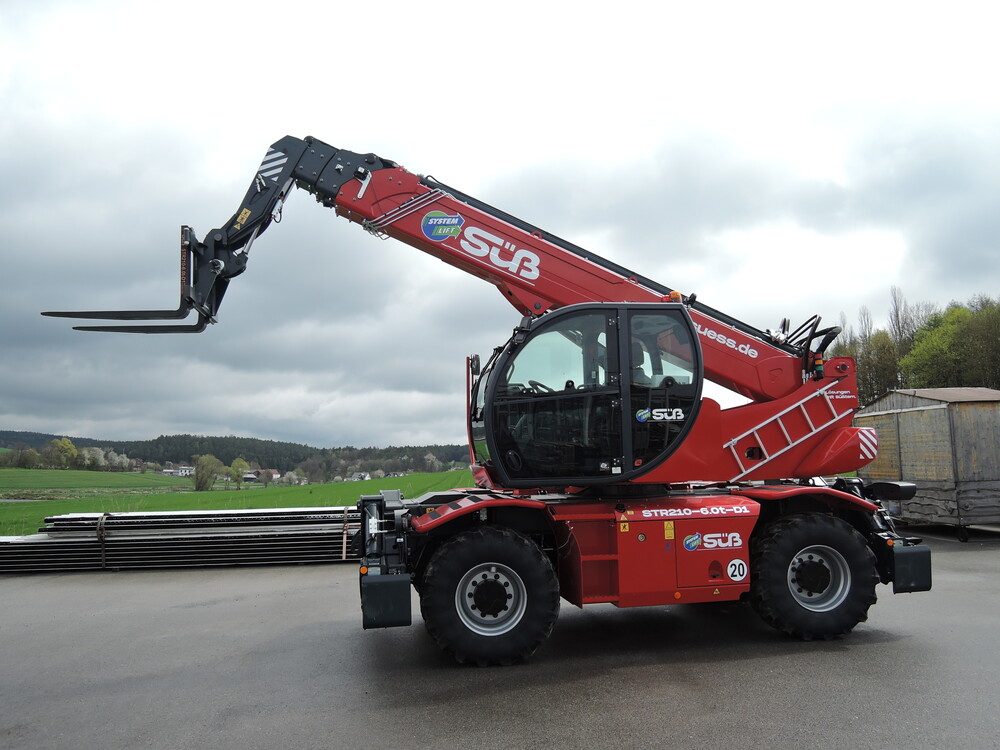

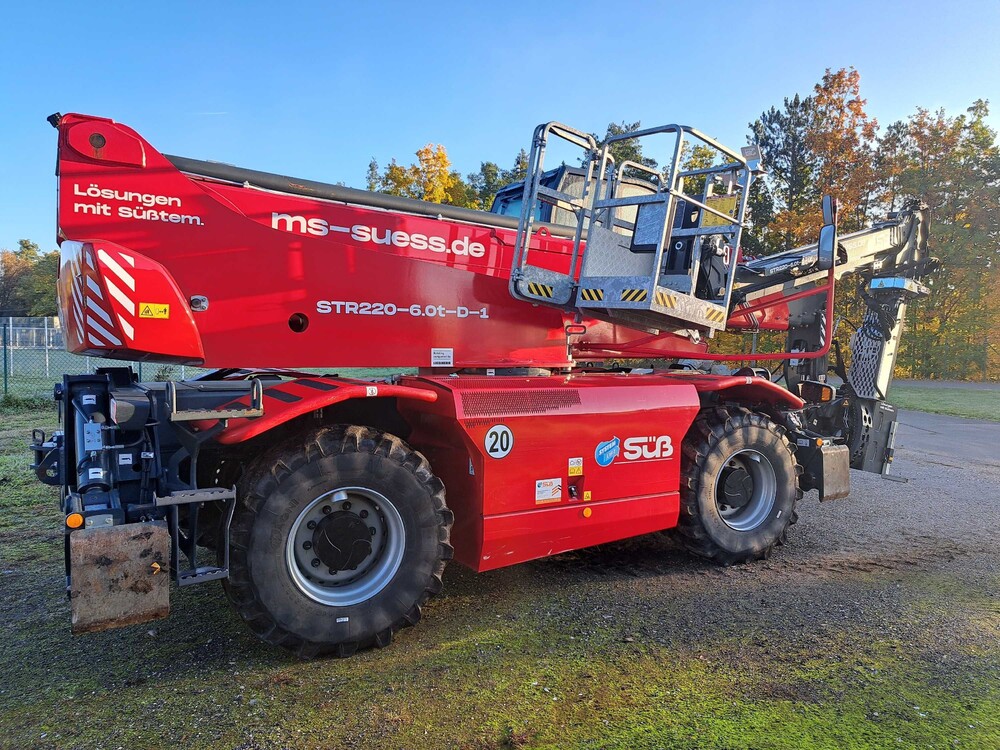

Telehandler rotable - STR220-6.0t-D

add to my request

Technical datas

Type:	Magni 6.22 RTH

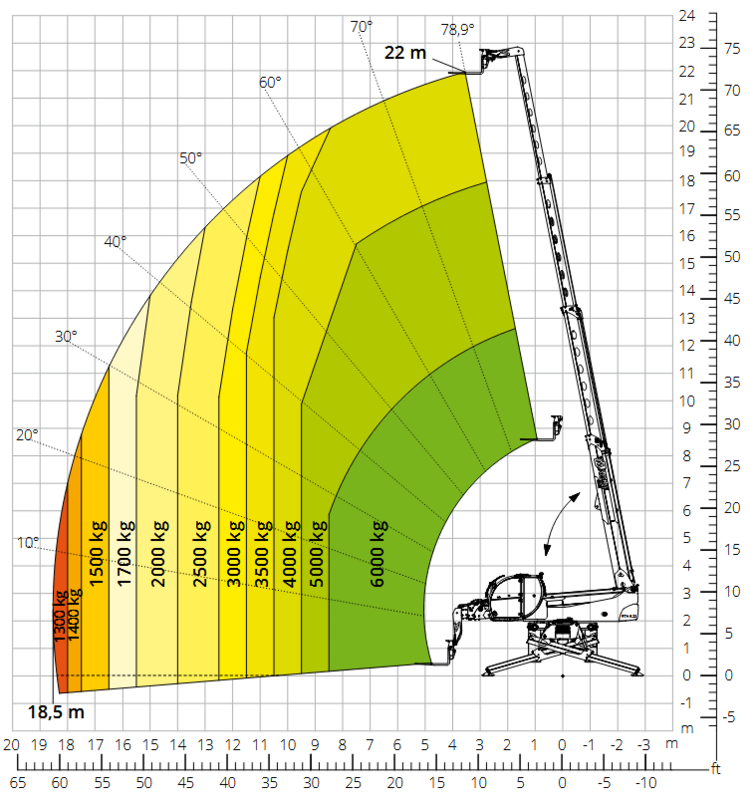

Lifting height max.:	22 m
Capacity max.:	6000 kg
Horizontal reach:	18,50 m
Load capacity at max. lifting height:	4000 kg
Load capacity at max. range/reach:	1300 kg
Transport dimensions:	7,04 x 2,53 m*
Power:	diesel
Machine height:	3,12 m
Weight:	19100 kg
Dimensions for support max.:	5,44 x 5,87 m
Dimensions for support min.:	5,44 x 2,50 m
Drive speed max.:	20 km/h

Features

Level adjustment:	yes
Soot particle filter:	yes
Support frames:	yes
All-terrain mobility:	yes

Special features

Attachments (optional):
- Short forks 1.20 m
- Fork extensions 2.0 m
- load hook max. 6.0 t
- winch max. 5.0 t
- Work basket (LxW 4.53 x 0.83 m, load capacity 500 kg)

Special equipment:
- work lights
- Air conditioner
- remote control (optional)
- low-marking tires (optional)

Also with operating personnel on request

* Transport length without attachment

Attachment parts

Forks 1,20 m

add to my request

Remote control

add to my request

Fork extensions

add to my request

Jib with winch

add to my request

Hook

add to my request

Winch

add to my request

Platform

add to my request

Special lift

Capacity max.:	200 kg
Length:	1,26 m
Width:	0,72 m
Permissible number of people:	2
For areas that are difficult to access:	Underground work of up to -9.6 m and reaching behind obstacles by up to 7.9 m are possible

add to my request

Markierungsarme Reifen Teleskopstapler

add to my request

Electric drive (supply) 400 V/32 A

Electric drive:

is only possible in supported (outrigger) mode.

add to my request
