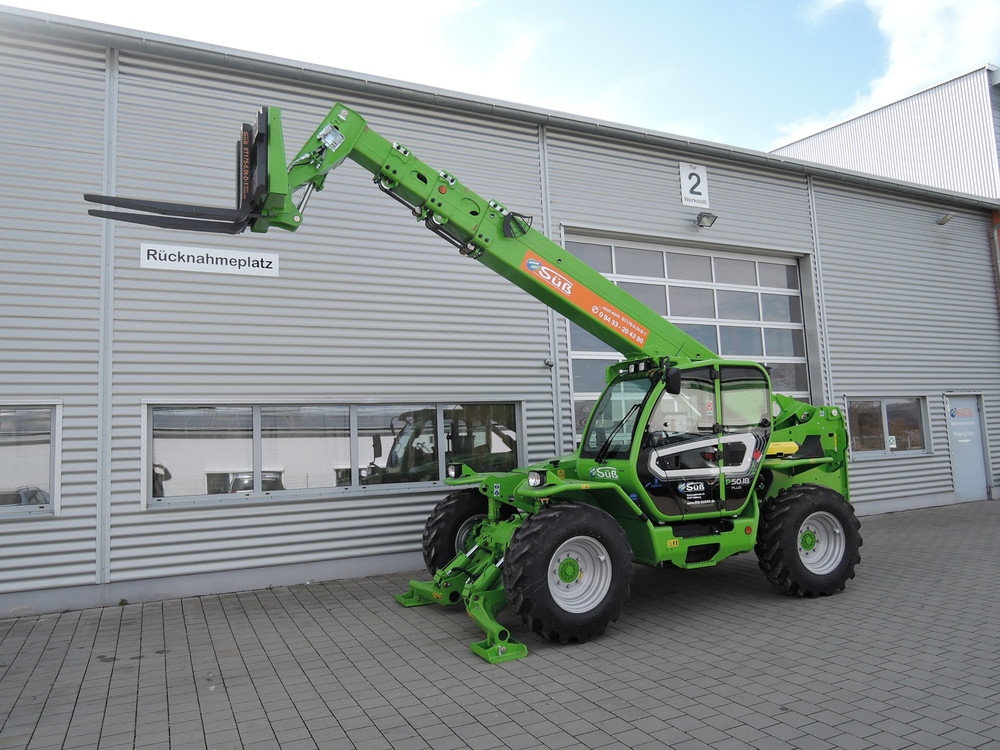

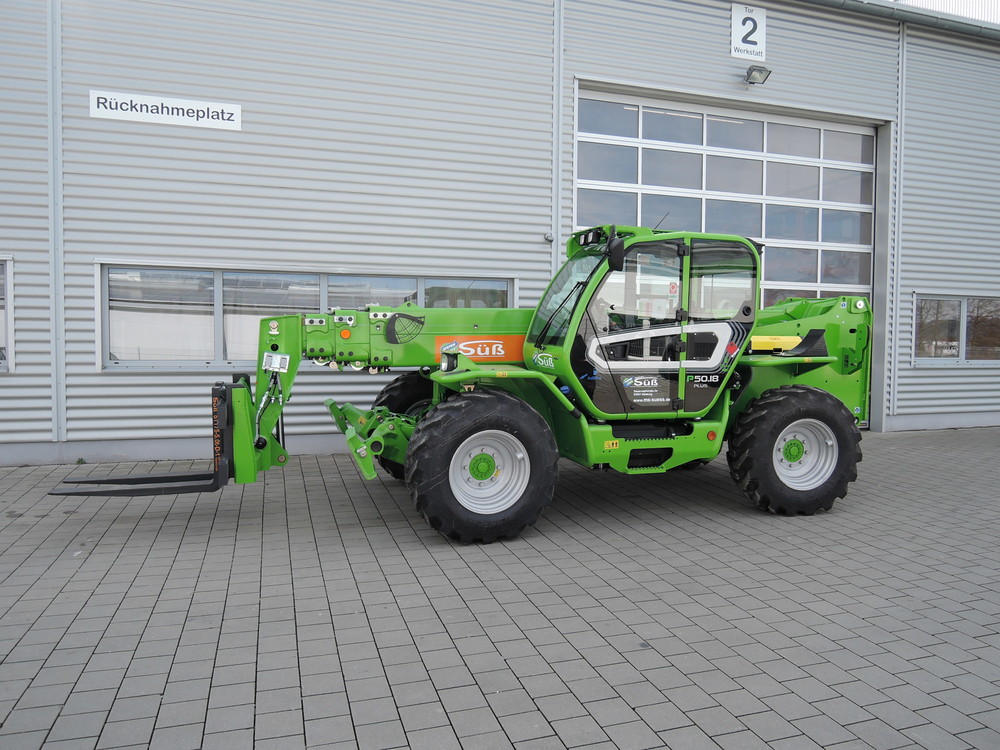

Telehandler - ST175-5.0t-D

add to my request

Technical datas

Type:Merlo P 50.18 Plus
Lifting height max.:17,50 m
Capacity max.:5000 kg*
Horizontal reach:13,50 m
Load capacity at max. lifting height:2500 kg
Load capacity at max. range/reach:750 kg
Transport dimensions:6,19 x 2,48 m**
Power:diesel
Machine height:2,54 m
Boom side-shift:445 mm
Leveling:+/- 8°
Weight:13300 kg
Drive speed max.:20 km/h

Features

Rotation:no
Transmission :Hydrostat

Special features

Attachements optional:
+ Load hook: 3,8 t, Load capacity max. 4000 kg
+ Long forks: 2,40 m

Equipment:
+ Side shift of the upper carriage
+ Three types of steering
+ Hydraulic leveling
+ Hydraulic side shift
+ Hydraulic outriggers
+ Cabin with heating
+ Work lights front and rear

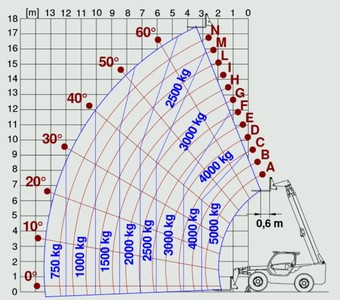

* 5000 kg at 0.6 m LSP, see diagram

Also with operating personnel on request

Attachment parts

Shovel

Winch

Forks 2,40 m

Forks 1,20 m

Hook

Crane hook
Capacity:3500 kg
Length:1340 mm
